Using the sun for DHW heating.

Alongside the ease of drawing off water and the extraordinary thermal insulation and water treatment quality, the issues of cleanliness and hygiene are of crucial importance. All surfaces in contact with potable water are thus sealed with high-quality enamel or else made of stainless steel.

Composite thermal insulation consisting of a vacuum insulation panel and high-density polyurethane foam provides excellent protection and keeps heat losses to a minimum. Efficiency is maximised accordingly.

Since no mechanical elements are built into this device, its long-term operational reliability is assured.

In addition to water heaters that are supplied conventionally by boilers, there are versions that also allow solar-generated heat to be fed in. A solar collector system for DHW heating requires a special bivalent cylinder, for example. The Weishaupt Aqua Sol is equipped with two heat exchangers. The lower one is fed with solar energy, while the upper one is supplied by the heating system if there is not enough solar thermal available.

If solar thermal is to be used for space heating support as well as for DHW, a large-volume thermal store is needed. Weishupt's innovative WES thermal store preserves the solar yield with its excellent thermal insulation, ensures ideal heat distribution, and its hot-water output is outstandingly hygienic.

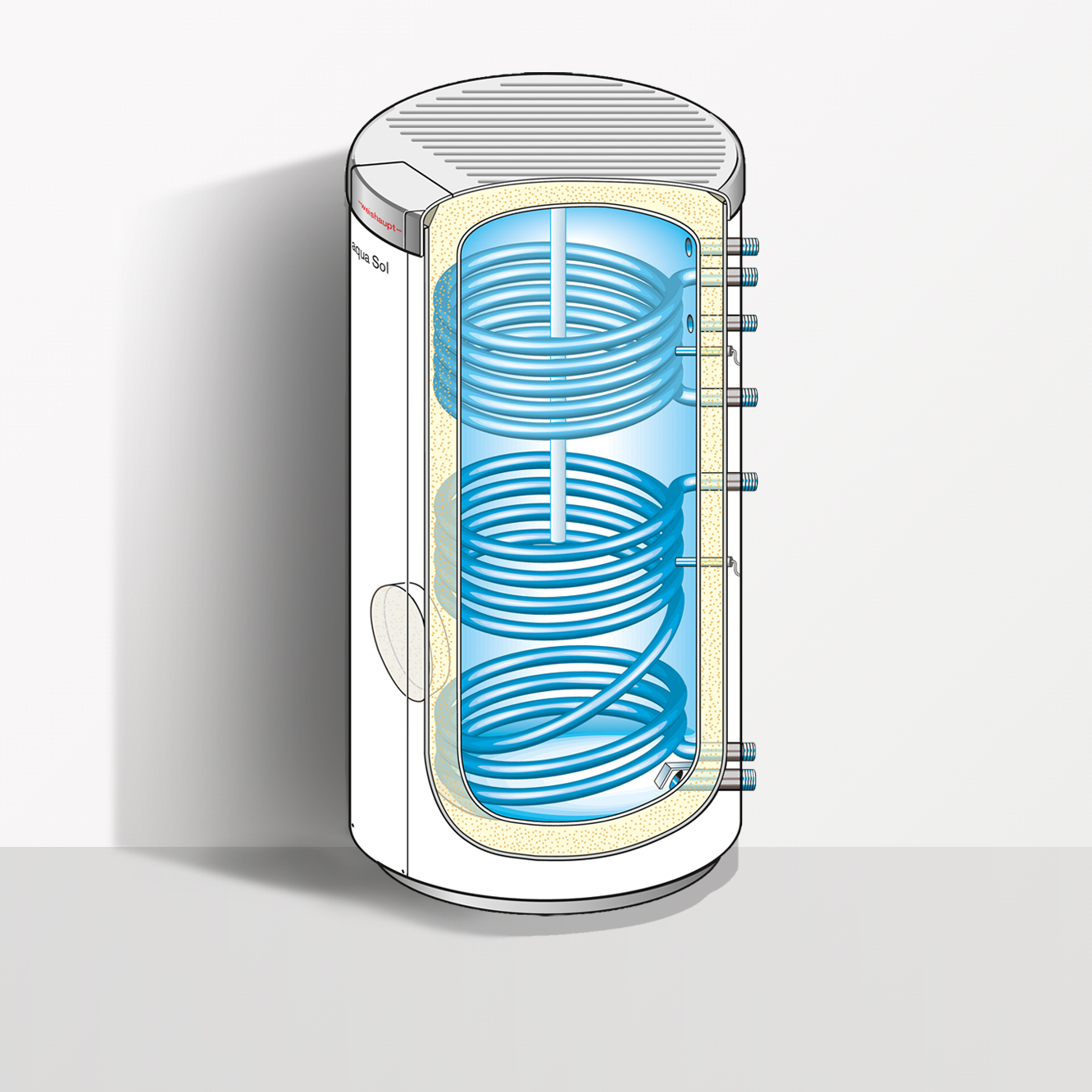

This is a bivalent cylinder for solar DHW heating. Bivalent means that there are two heating coils. The lower coil is connected to the solar circuit, the upper one to the heating system. If the solar thermal isn't providing enough energy, the heating system switches on automatically.

“Eco” cylinder versions benefit from increased energy efficiency: They retain heat for longer thanks to their composite insulation with vacuum insulation panels and high-density polyurethane foam.

Weishaupt WES thermal stores organise and distribute the heat produced by different energy sources (gas or oil-fired condensing boilers, heat pumps, solar collectors, solid-fuel boilers, or stoves) with an exemplary degree of efficiency. Inlet dampers ensure that the ideal temperature stratification is always maintained within the thermal store. Energy is also drawn off in an economical manner, with solar energy taking priority over any other source. The Combi-version of the thermal store has integrated DHW and solar heat exchangers.

The thermal store is charged with energy via a heat generator of any type - preferably with solar thermal energy. The stratification column utilises the physical properties of rising heat to layer the energy at the appropriate level in the thermal store, depending on the existing temperatures. The energy stored as heat can be used for space heating.
